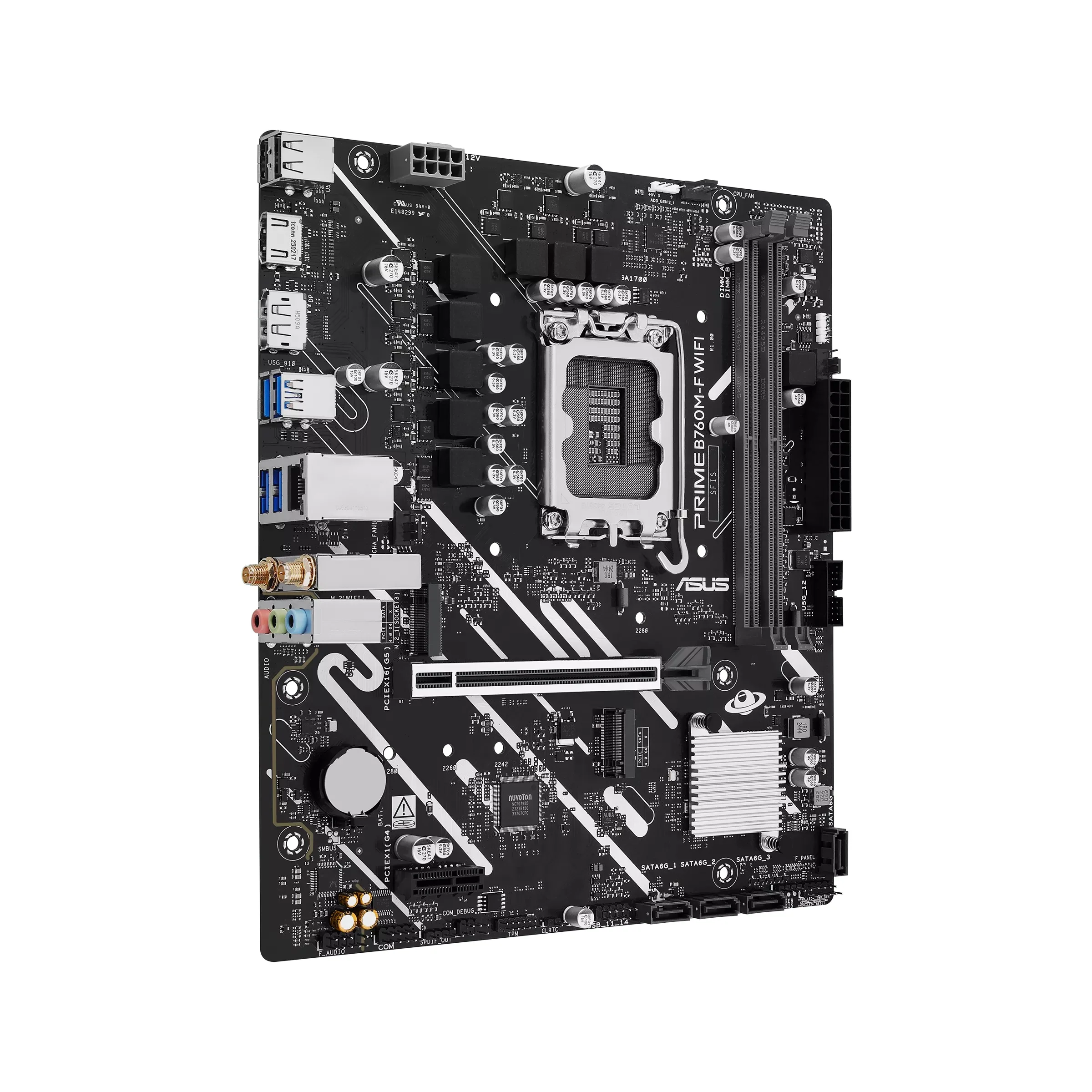

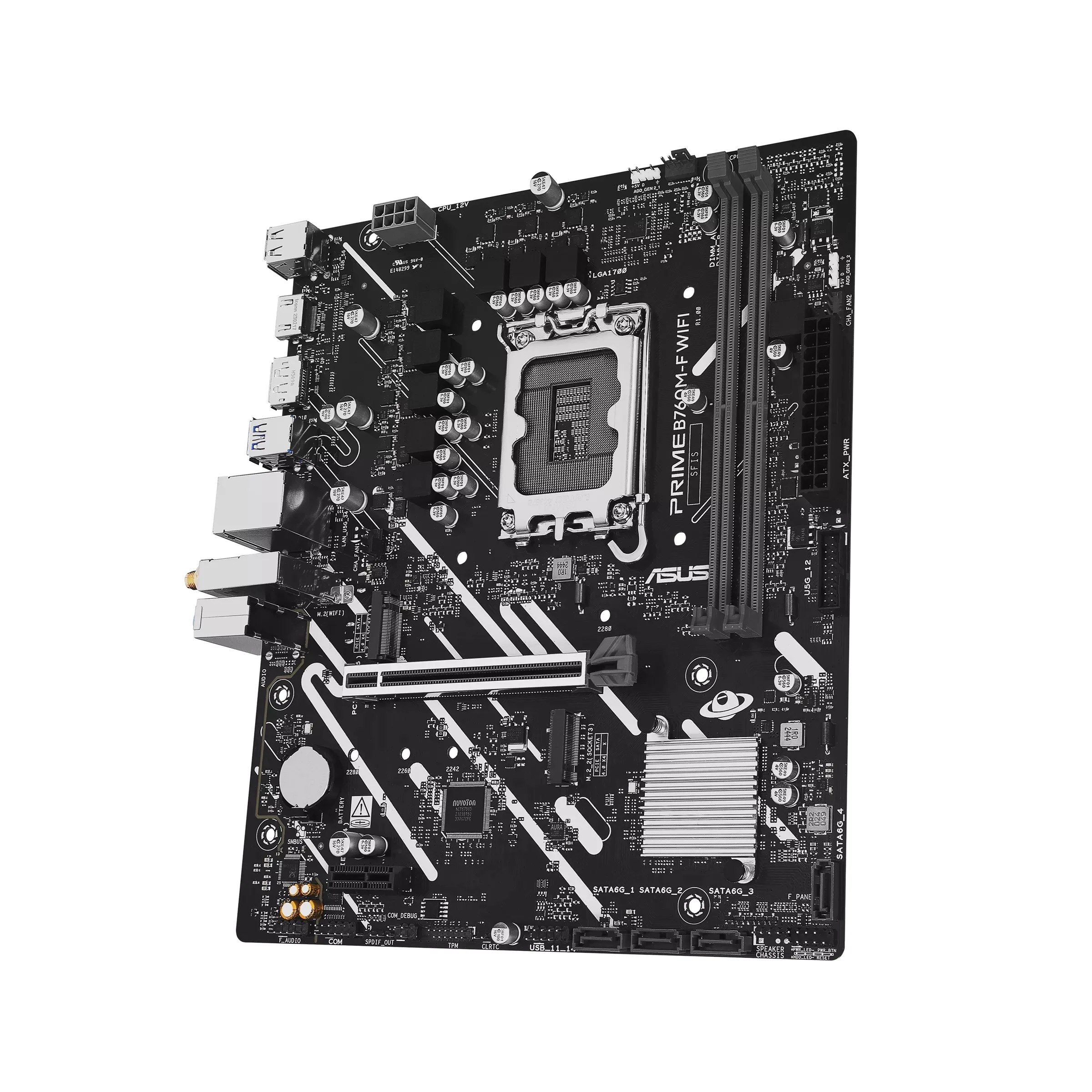

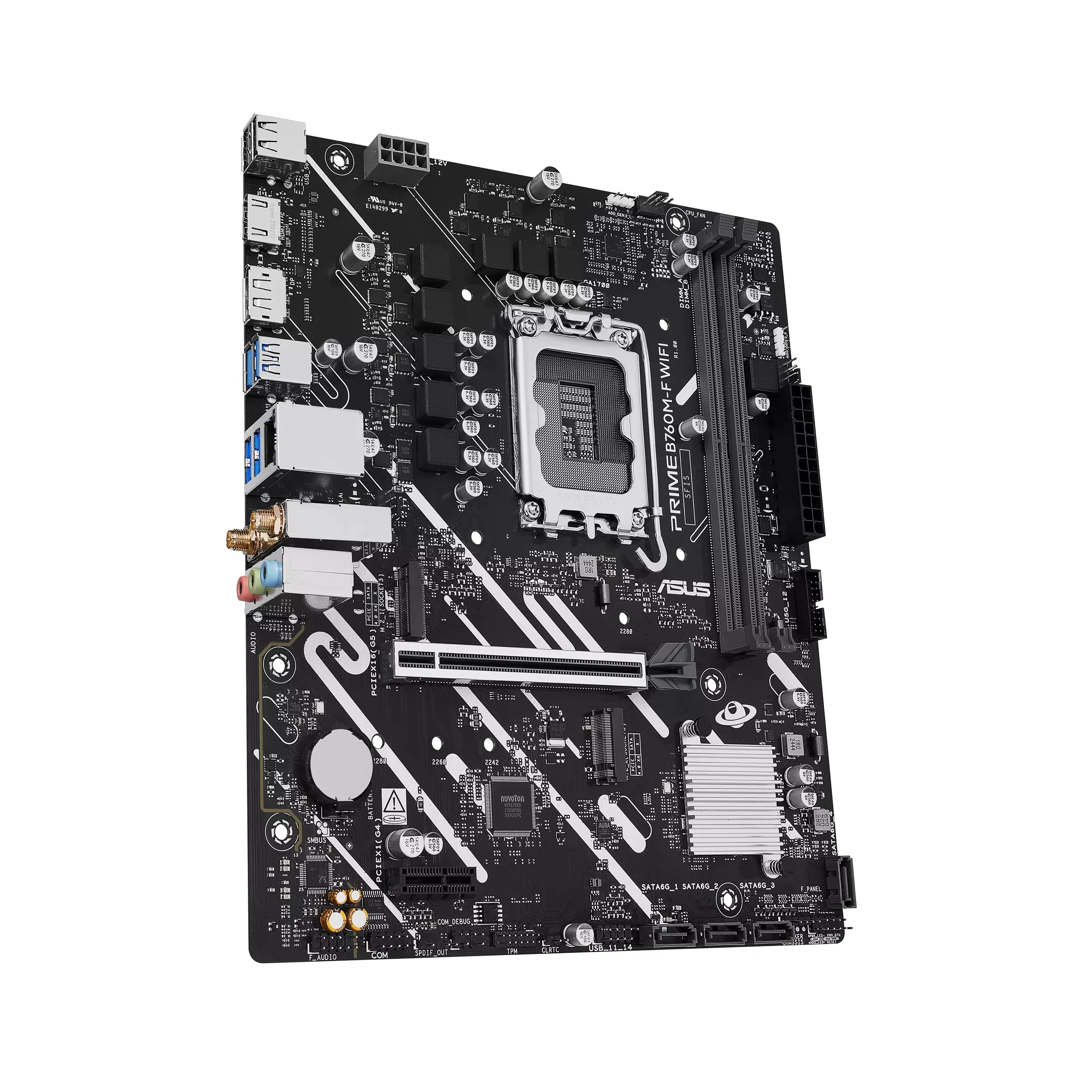

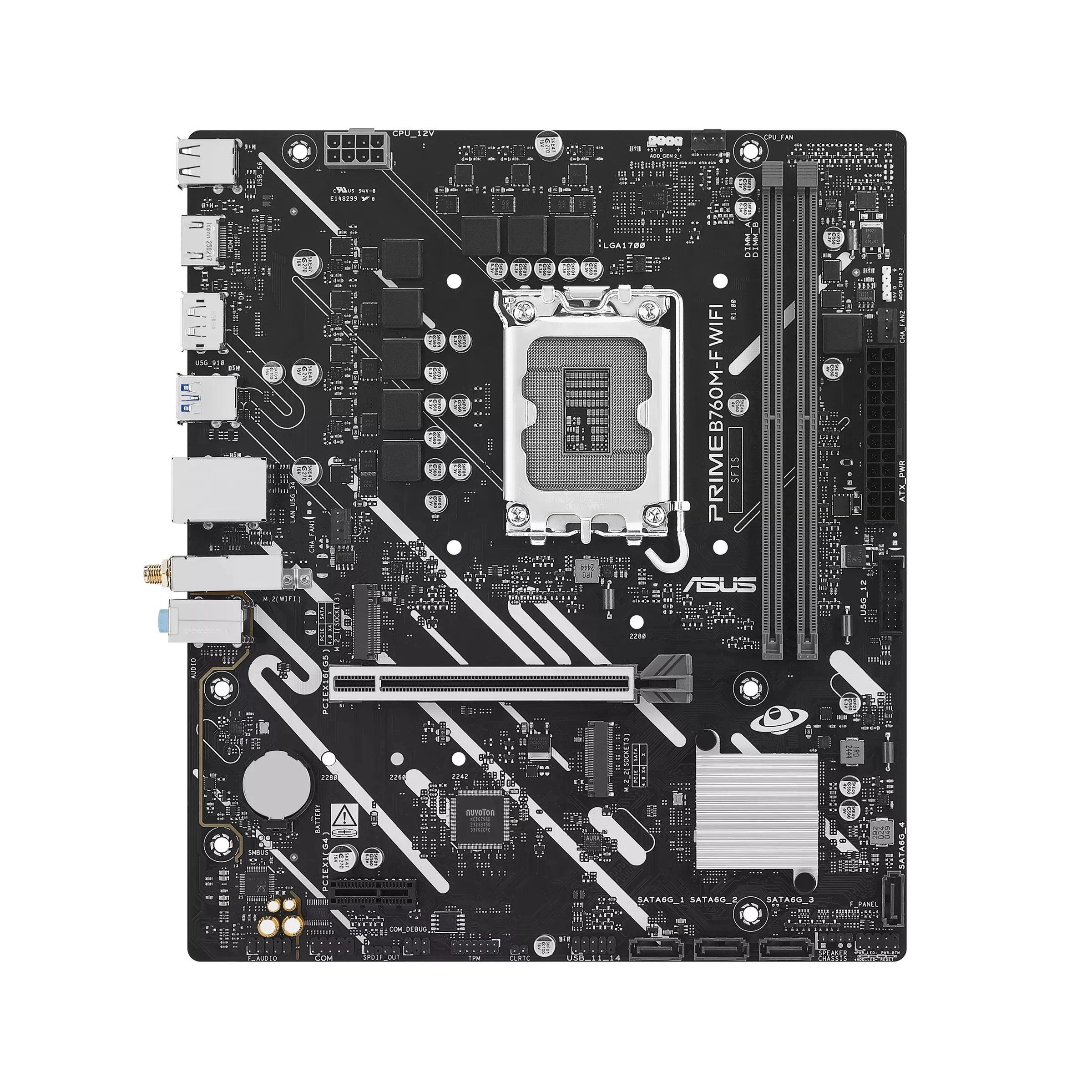

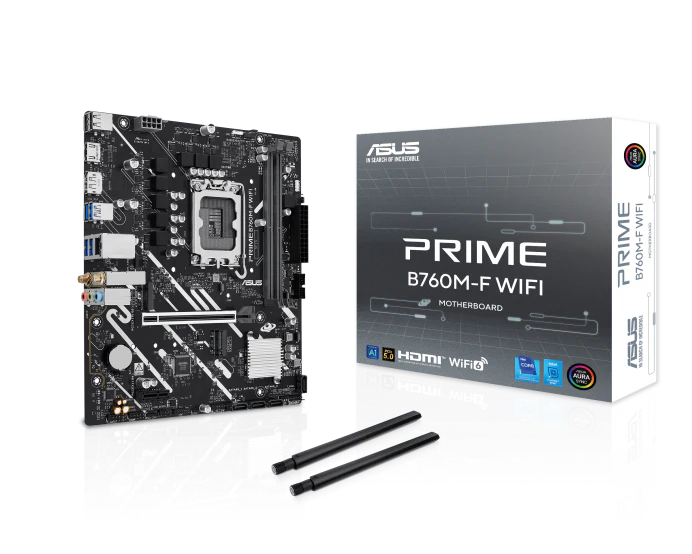

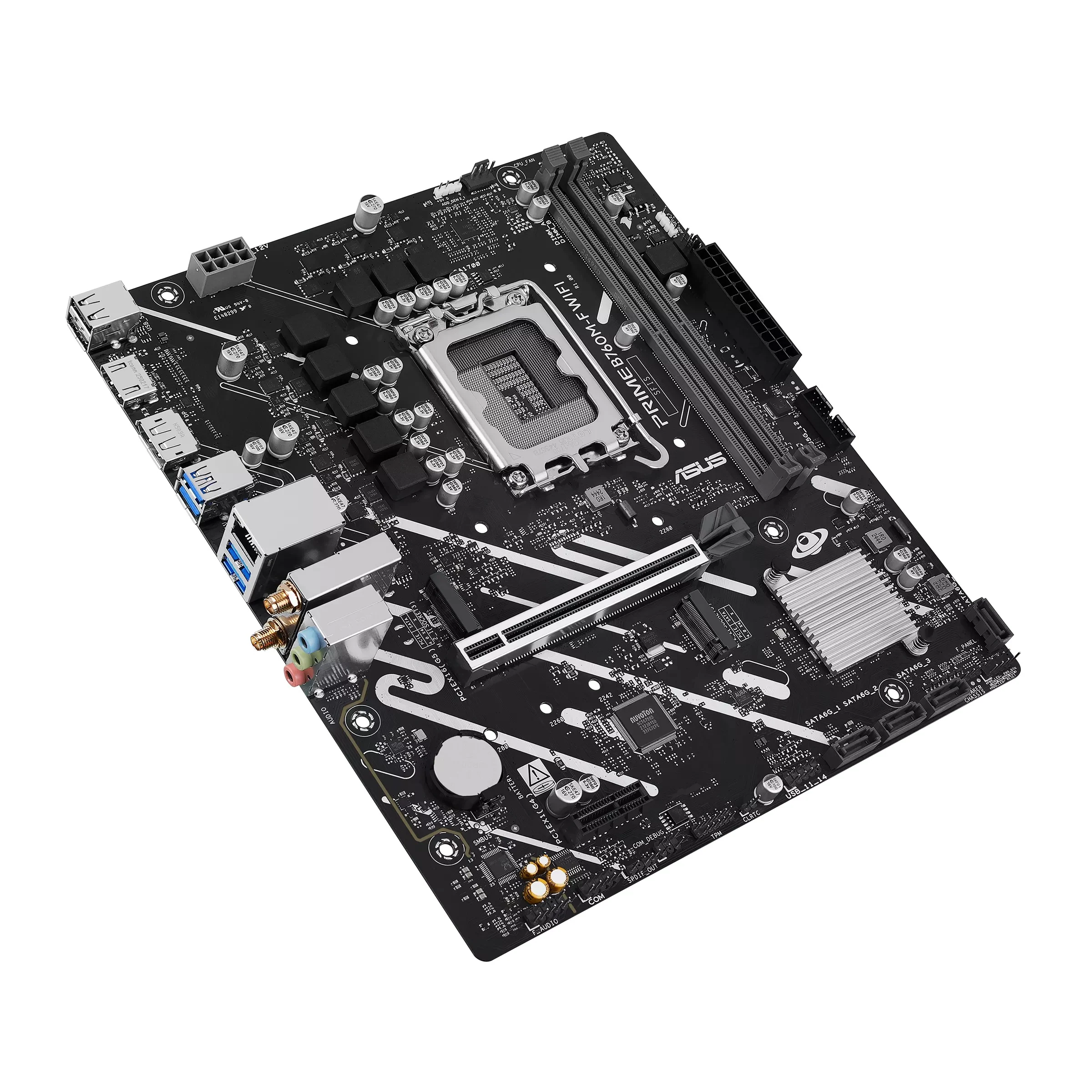

ASUS Prime B760M-F WiFi DDR5 Intel LGA1700 Micro-ATX Motherboard with PCIe 5.0 and WiFi 6 - Black

ASUS Prime B760M-F WiFi DDR5 Intel LGA1700 Micro-ATX Motherboard with PCIe 5.0 and WiFi 6 - Black

The ASUS Prime B760M-F WiFi is a micro-ATX motherboard built on the Intel B760 chipset for LGA1700 processors, supporting 12th, 13th, and 14th Gen Intel Core CPUs. It features PCIe 5.0 for the primary GPU slot, two PCIe 4.0 M.2 slots for fast NVMe storage, and DDR5 memory support up to 96GB.

Wi-Fi 6, Bluetooth 5.3, and Realtek 1Gb Ethernet cover all connectivity needs, while Aura Sync with two ARGB Gen 2 headers enables full RGB customization. ASUS 5X Protection III, Fan Xpert 2+, and Two-Way AI Noise Cancelation round out a feature-rich, reliable platform for gaming and AI computing.

Key Features

  • Intel LGA1700 socket — supports 12th, 13th, and 14th Gen Intel Core processors
  • PCIe 5.0 x16 primary GPU slot for latest-gen graphics cards
  • Two PCIe 4.0 M.2 slots for high-speed NVMe storage
  • DDR5 support up to 96GB with XMP and speeds up to 8000MHz (OC)
  • Wi-Fi 6 (802.11ax) dual-band and Bluetooth 5.3 for fast wireless connectivity
  • Realtek 1Gb Ethernet with ASUS LANGuard for stable wired networking
  • Aura Sync with 2 x Addressable RGB Gen 2 headers
  • Realtek 7.1 Surround Sound HD Audio with audio shielding and premium capacitors
  • Two-Way AI Noise Cancelation for clear communication in games and calls
  • ASUS 5X Protection III — DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot
  • Fan Xpert 2+ with hybrid fan headers and multi-source temperature monitoring
  • Front and rear USB 5Gbps ports for fast data transfer

Technical Specifications

Specification Details
Model PRIME B760M-F WIFI
Form Factor Micro-ATX
Dimensions 24.4 x 21.1 cm (9.6 x 8.3 inch)
Chipset Intel B760
CPU Socket Intel LGA1700
CPU Support 12th, 13th, 14th Gen Intel Core, Pentium Gold, Celeron
Memory Slots 2 x DIMM DDR5
Max Memory 96GB
Memory Speed 4800 – 8000MHz (OC)
Memory Architecture Dual Channel
XMP Support Yes
PCIe Slots 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x1
M.2 Slots 2 x PCIe 4.0 x4 (Key M)
SATA Ports 4 x SATA 6Gb/s
RAID Support SATA RAID 0/1/5/10
Ethernet Realtek 1Gb with LANGuard
Wi-Fi Wi-Fi 6 (802.11ax) 2.4/5GHz
Bluetooth 5.3
Audio Realtek 7.1 Surround Sound HD Audio (24-bit/192kHz)
BIOS 128MB Flash ROM, UEFI AMI BIOS
OS Support Windows 11, Windows 10 (64-bit)

Display Output

Specification Details
HDMI 1 x HDMI 1.4 (4K @ 30Hz)
DisplayPort 1 x DisplayPort 1.4 (4K @ 60Hz)

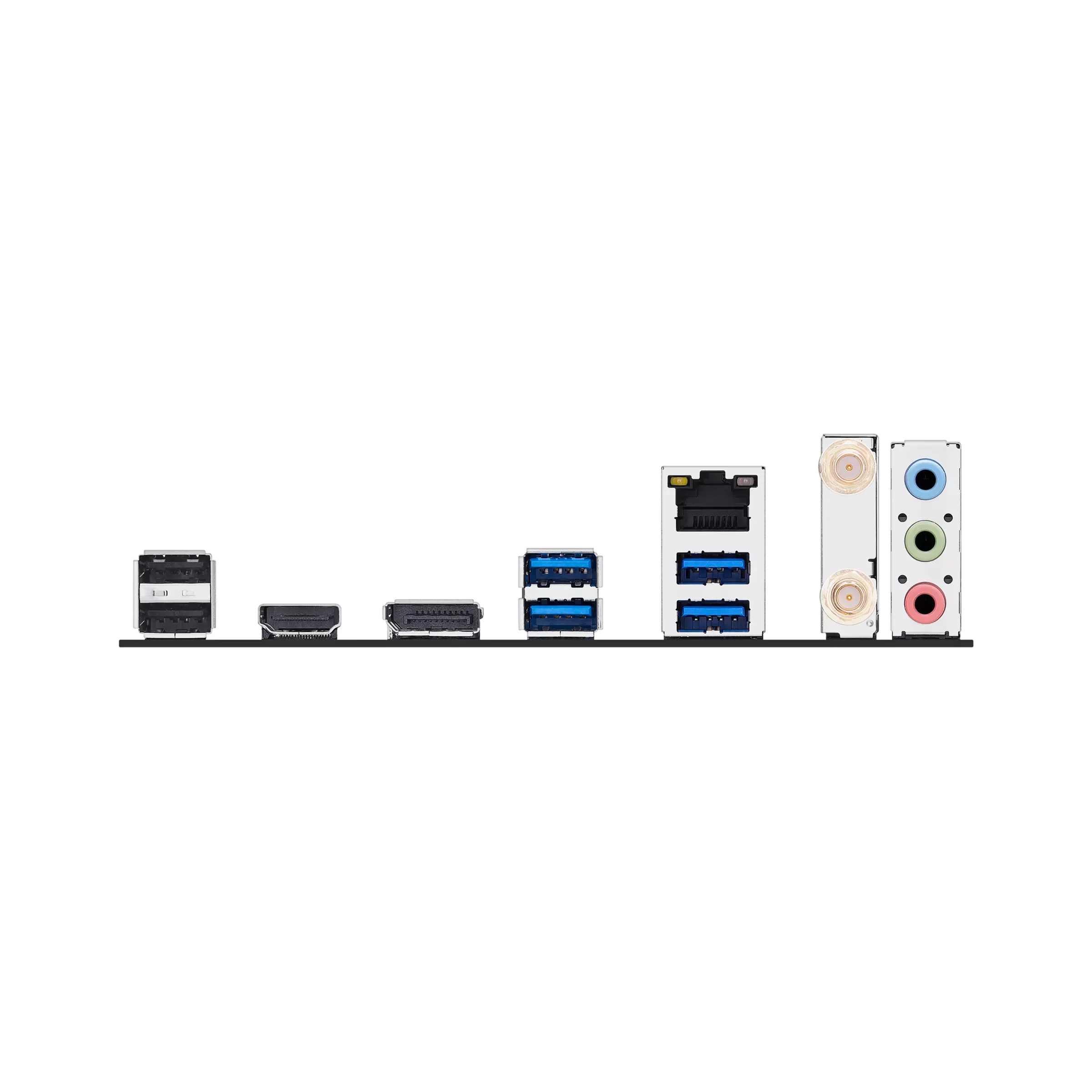

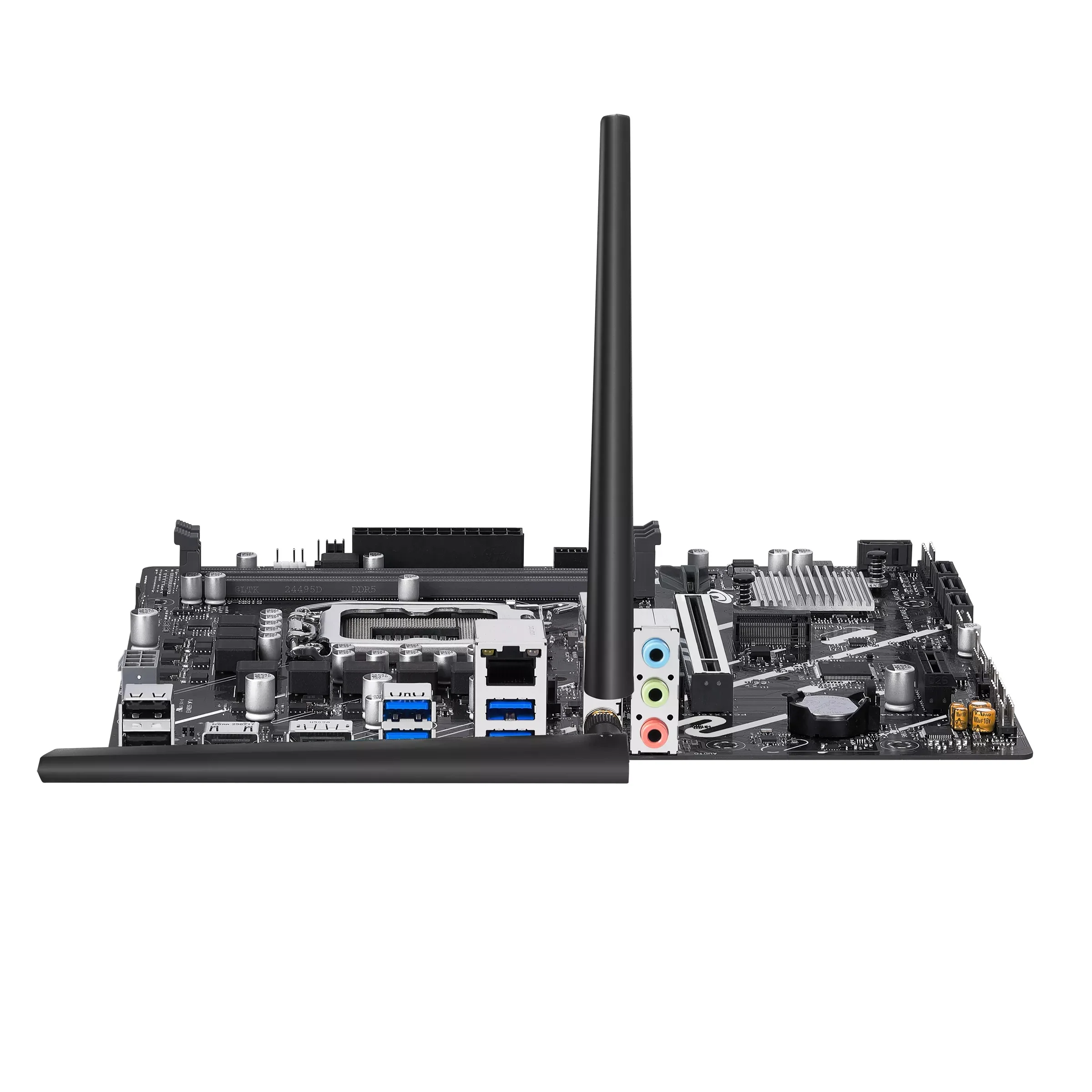

Rear I/O Ports

Specification Details
USB 4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A
Video Output 1 x HDMI, 1 x DisplayPort
Ethernet 1 x Realtek 1Gb RJ45
Audio 3 x Audio Jacks
Wireless 1 x Wi-Fi Antenna Module

Internal Connectors

Specification Details
CPU Fan Header 1 x 4-pin
Chassis Fan Headers 2 x 4-pin
Main Power 1 x 24-pin
CPU Power 1 x 8-pin +12V
Front USB 1 x USB 5Gbps header, 1 x USB 2.0 header
ARGB Headers 2 x Addressable RGB Gen 2
Audio Header 1 x Front Panel Audio (F_AUDIO)
Other Headers 1 x S/PDIF Out, 1 x COM Port, 1 x Clear CMOS, 1 x SPI TPM (14-1 pin), 1 x Speaker, 1 x Front Panel System (10-1 pin)

Software

Specification Details
ASUS Software Armoury Crate, Aura Sync, Fan Xpert 2+, AI Suite 3, DIGI+ VRM, Two-Way AI Noise Cancelation, ASUS DriverHub
Third-Party Norton 360 Deluxe (60-day trial), WinRAR (40-day trial)
BIOS Features CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode

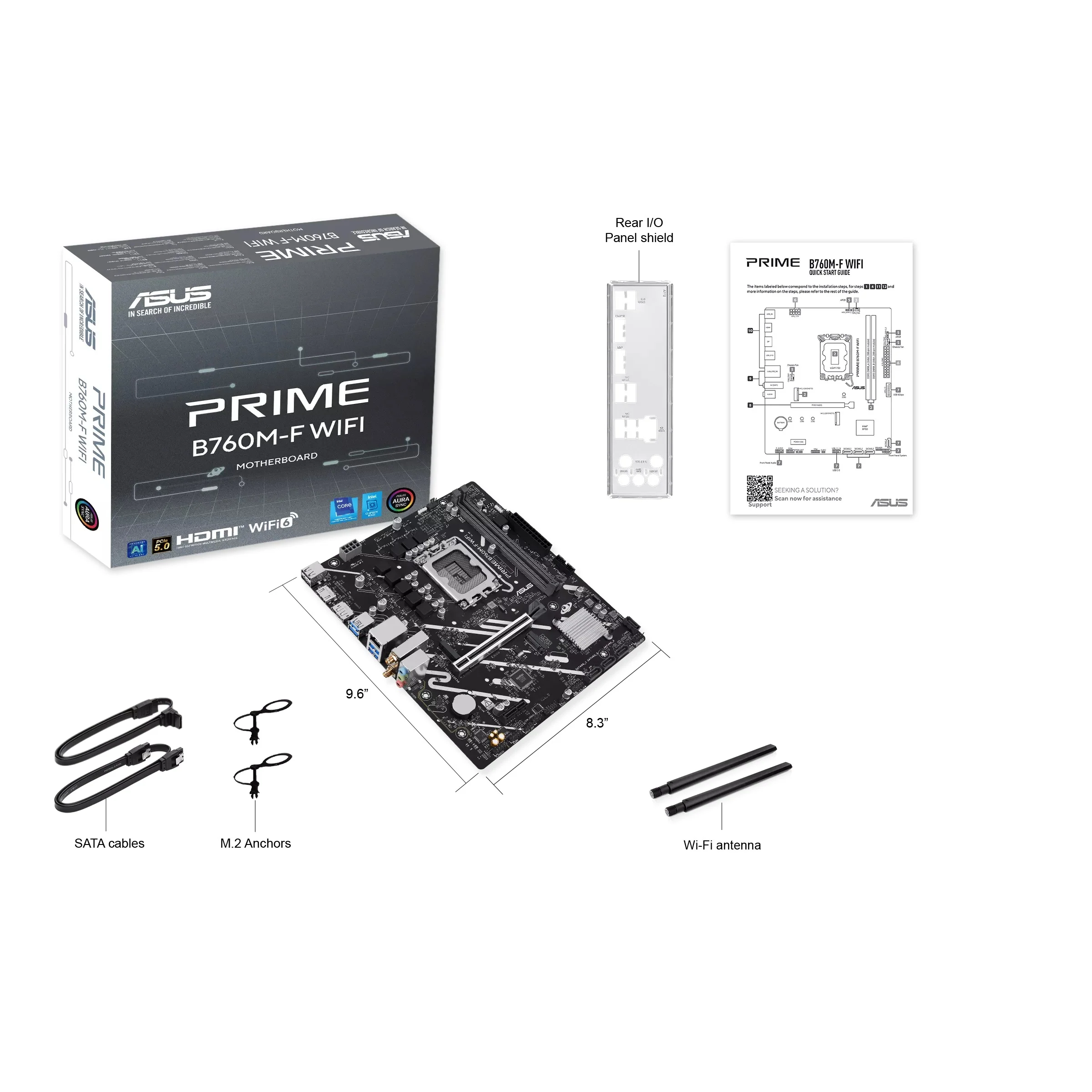

Box Contents

  • 1 x ASUS Prime B760M-F WiFi Motherboard
  • 2 x SATA 6Gb/s Cables
  • 1 x ASUS Wi-Fi Moving Antenna

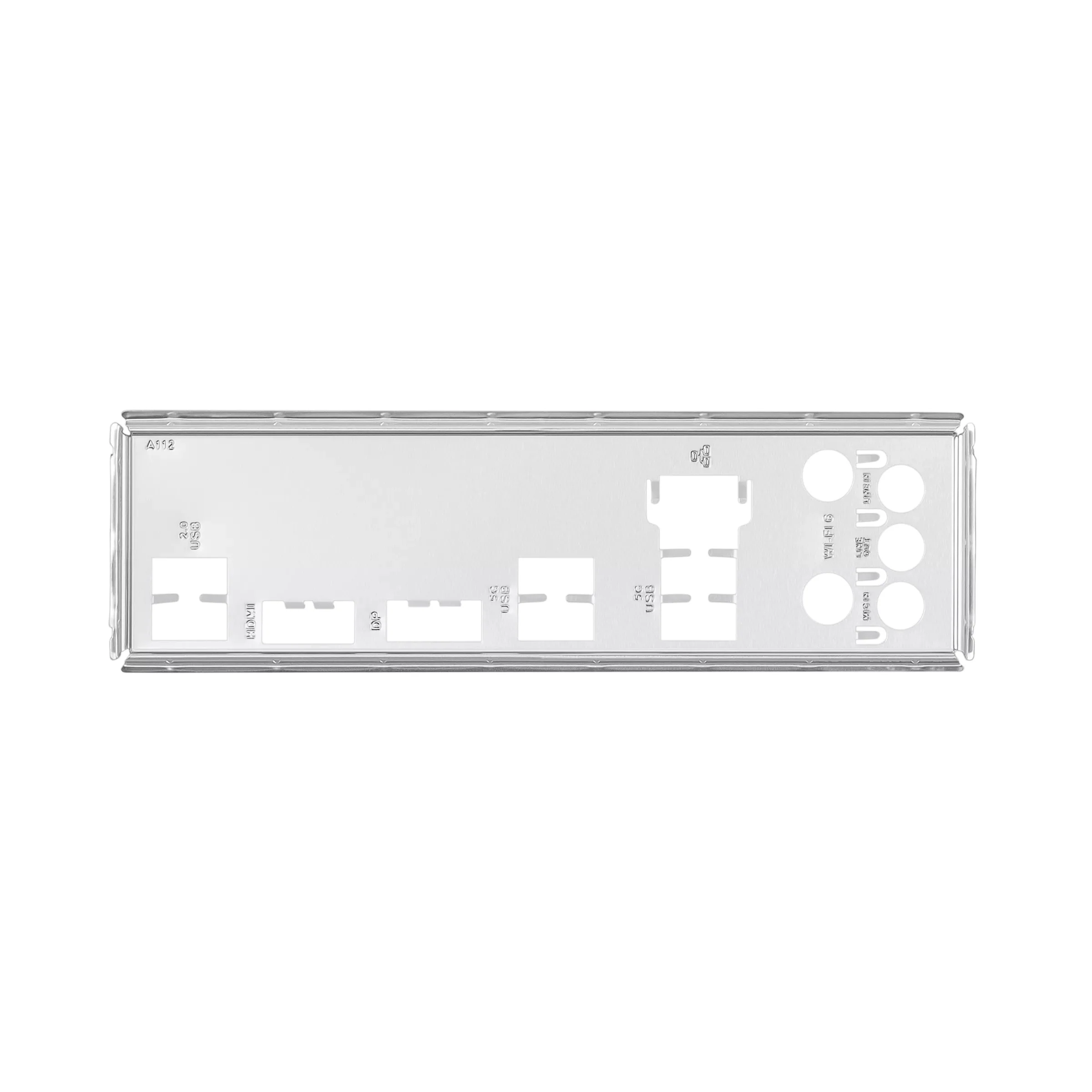

  • 1 x I/O Shield
  • 2 x M.2 Anchors
  • 1 x Quick Start Guide
$41.08

Original: $136.93

-70%
ASUS Prime B760M-F WiFi DDR5 Intel LGA1700 Micro-ATX Motherboard with PCIe 5.0 and WiFi 6 - Black—

$136.93

$41.08

Product Information

Shipping & Returns

Description

The ASUS Prime B760M-F WiFi is a micro-ATX motherboard built on the Intel B760 chipset for LGA1700 processors, supporting 12th, 13th, and 14th Gen Intel Core CPUs. It features PCIe 5.0 for the primary GPU slot, two PCIe 4.0 M.2 slots for fast NVMe storage, and DDR5 memory support up to 96GB.

Wi-Fi 6, Bluetooth 5.3, and Realtek 1Gb Ethernet cover all connectivity needs, while Aura Sync with two ARGB Gen 2 headers enables full RGB customization. ASUS 5X Protection III, Fan Xpert 2+, and Two-Way AI Noise Cancelation round out a feature-rich, reliable platform for gaming and AI computing.

Key Features

  • Intel LGA1700 socket — supports 12th, 13th, and 14th Gen Intel Core processors
  • PCIe 5.0 x16 primary GPU slot for latest-gen graphics cards
  • Two PCIe 4.0 M.2 slots for high-speed NVMe storage
  • DDR5 support up to 96GB with XMP and speeds up to 8000MHz (OC)
  • Wi-Fi 6 (802.11ax) dual-band and Bluetooth 5.3 for fast wireless connectivity
  • Realtek 1Gb Ethernet with ASUS LANGuard for stable wired networking
  • Aura Sync with 2 x Addressable RGB Gen 2 headers
  • Realtek 7.1 Surround Sound HD Audio with audio shielding and premium capacitors
  • Two-Way AI Noise Cancelation for clear communication in games and calls
  • ASUS 5X Protection III — DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot
  • Fan Xpert 2+ with hybrid fan headers and multi-source temperature monitoring
  • Front and rear USB 5Gbps ports for fast data transfer

Technical Specifications

Specification Details
Model PRIME B760M-F WIFI
Form Factor Micro-ATX
Dimensions 24.4 x 21.1 cm (9.6 x 8.3 inch)
Chipset Intel B760
CPU Socket Intel LGA1700
CPU Support 12th, 13th, 14th Gen Intel Core, Pentium Gold, Celeron
Memory Slots 2 x DIMM DDR5
Max Memory 96GB
Memory Speed 4800 – 8000MHz (OC)
Memory Architecture Dual Channel
XMP Support Yes
PCIe Slots 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x1
M.2 Slots 2 x PCIe 4.0 x4 (Key M)
SATA Ports 4 x SATA 6Gb/s
RAID Support SATA RAID 0/1/5/10
Ethernet Realtek 1Gb with LANGuard
Wi-Fi Wi-Fi 6 (802.11ax) 2.4/5GHz
Bluetooth 5.3
Audio Realtek 7.1 Surround Sound HD Audio (24-bit/192kHz)
BIOS 128MB Flash ROM, UEFI AMI BIOS
OS Support Windows 11, Windows 10 (64-bit)

Display Output

Specification Details
HDMI 1 x HDMI 1.4 (4K @ 30Hz)
DisplayPort 1 x DisplayPort 1.4 (4K @ 60Hz)

Rear I/O Ports

Specification Details
USB 4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A
Video Output 1 x HDMI, 1 x DisplayPort
Ethernet 1 x Realtek 1Gb RJ45
Audio 3 x Audio Jacks
Wireless 1 x Wi-Fi Antenna Module

Internal Connectors

Specification Details
CPU Fan Header 1 x 4-pin
Chassis Fan Headers 2 x 4-pin
Main Power 1 x 24-pin
CPU Power 1 x 8-pin +12V
Front USB 1 x USB 5Gbps header, 1 x USB 2.0 header
ARGB Headers 2 x Addressable RGB Gen 2
Audio Header 1 x Front Panel Audio (F_AUDIO)
Other Headers 1 x S/PDIF Out, 1 x COM Port, 1 x Clear CMOS, 1 x SPI TPM (14-1 pin), 1 x Speaker, 1 x Front Panel System (10-1 pin)

Software

Specification Details
ASUS Software Armoury Crate, Aura Sync, Fan Xpert 2+, AI Suite 3, DIGI+ VRM, Two-Way AI Noise Cancelation, ASUS DriverHub
Third-Party Norton 360 Deluxe (60-day trial), WinRAR (40-day trial)
BIOS Features CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode

Box Contents

  • 1 x ASUS Prime B760M-F WiFi Motherboard
  • 2 x SATA 6Gb/s Cables
  • 1 x ASUS Wi-Fi Moving Antenna
  • 1 x I/O Shield
  • 2 x M.2 Anchors
  • 1 x Quick Start Guide
