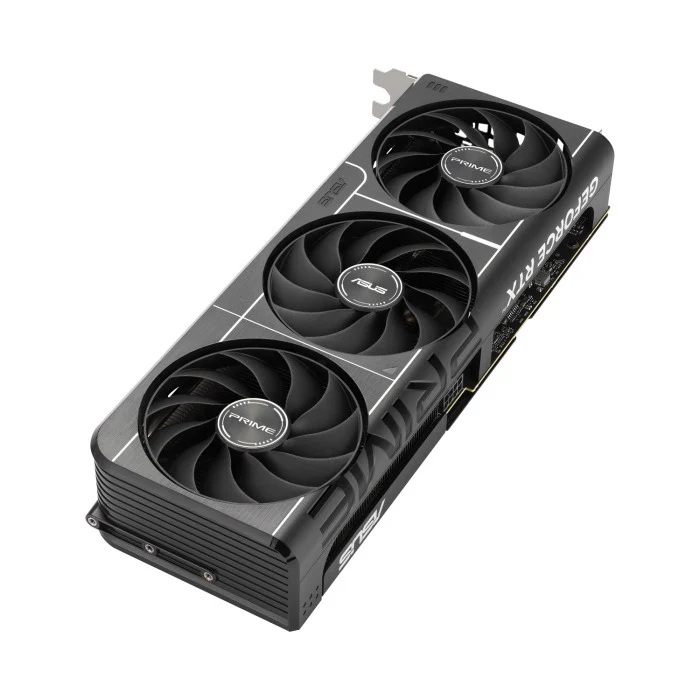

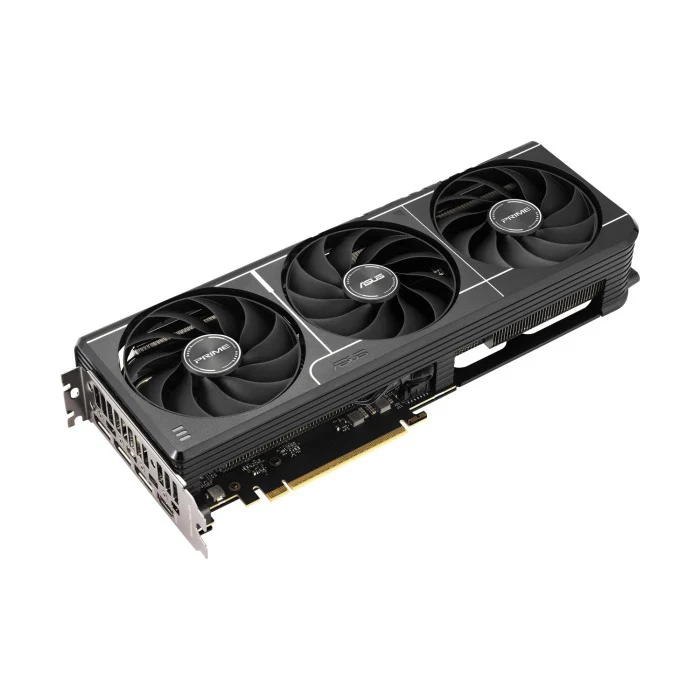

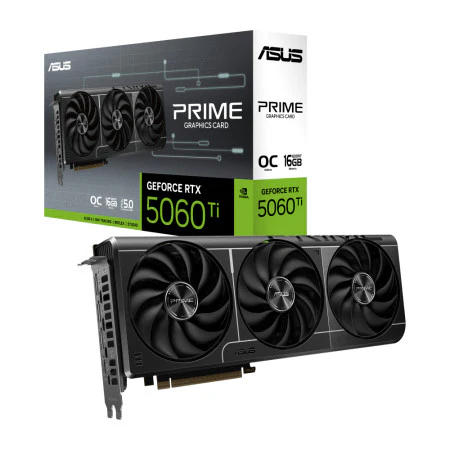

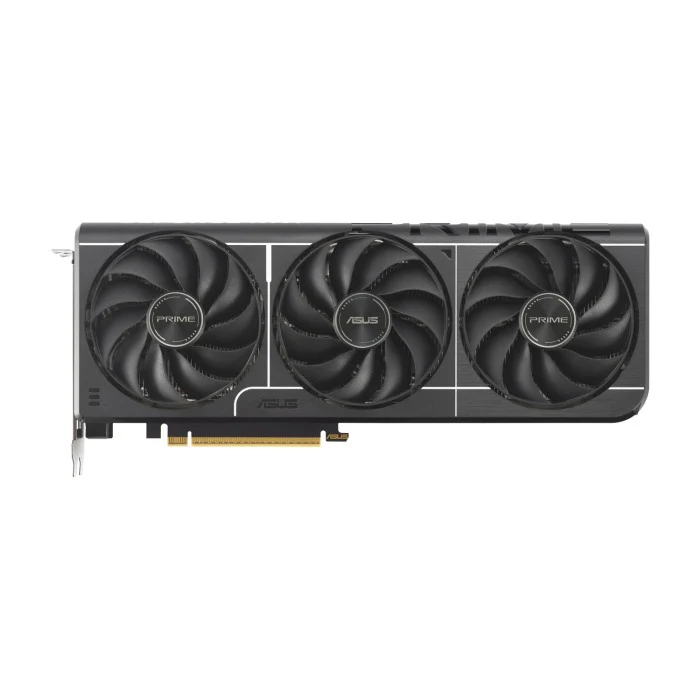

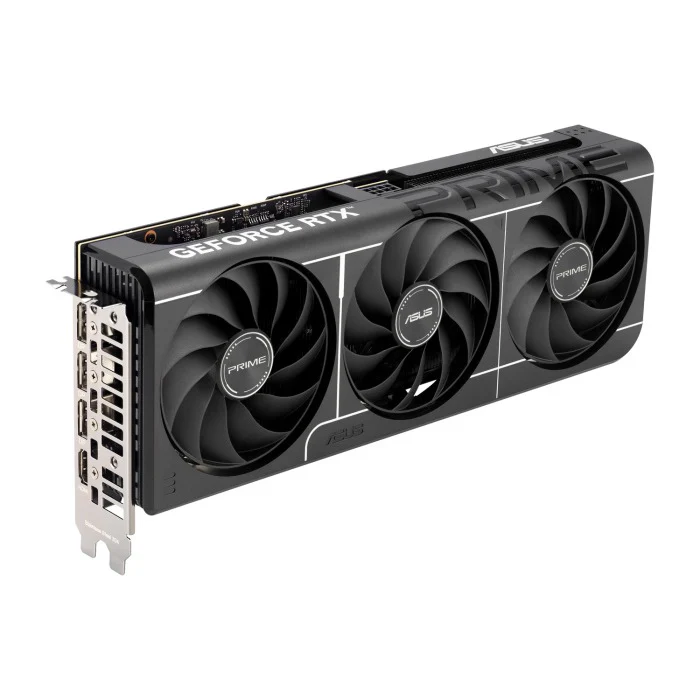

Asus Prime GeForce RTX 5060 Ti OC 16GB GDDR7 Triple Fan PCle 5.0 Graphics Card
The ASUS Prime GeForce RTX 5060 Ti OC Edition is a powerful mid-range graphics card based on NVIDIA's Blackwell architecture. Featuring 16 GB of ultra-fast GDDR7 memory and PCIe 5.0 support, this GPU is designed for high-resolution gaming, AI-accelerated workflows, and future-ready builds. Its compact 2.5-slot form factor fits small to medium chassis, while a triple Axial‑Tech fan setup ensures optimal cooling under heavy load.
 Key Features
- 16 GB GDDR7 VRAM on a 128‑bit memory interface (~28 Gbps, ~448 GB/s bandwidth)
- PCI Express 5.0 interface for maximum data throughput
- OC Edition — Boost clock up to ~2647 MHz for enhanced performance
- 4608 CUDA cores enable efficient rendering and compute tasks
- Supports DLSS 4 and advanced ray tracing features for realistic visuals
- Triple Axial‑Tech fans with dual‑ball bearings for efficient cooling and longevity
- Dual BIOS switch between Performance and Quiet profiles
- SFF‑Ready (2.5-slot) design for wide case compatibility and compact builds
 Specifications
| Feature | Specification |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| VRAM | 16 GB GDDR7 |
| Memory Bus | 128-bit |
| Memory Speed | ~28 Gbps (~448 GB/s bandwidth) |
| Boost Clock (OC) | Up to ~2647 MHz |
| Default Boost Clock | ~2617 MHz |
| Bus Interface | PCIe 5.0 x16 (x8 mode) |

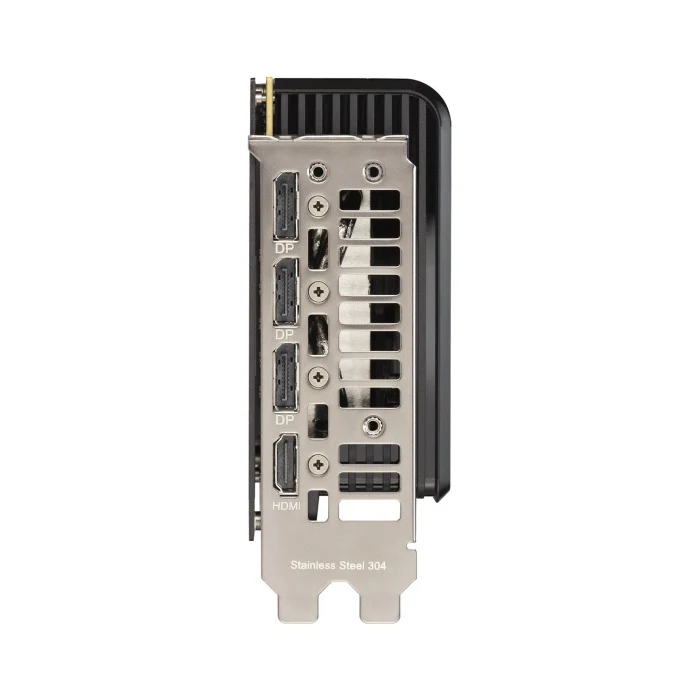

| Display Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| Max Resolution | Up to 7680 × 4320 (8K) |
| Slot Width | 2.5-slot design |
| Cooling System | Triple Axial‑Tech fans |
| Idle Fan Mode | Yes, 0 dB mode under ~50 °C |
| Fan Bearing | Dual ball bearings |
| Power Connector | 1× 8-pin PCIe |
| TDP / Board Power | ~180 W |
| Recommended PSU | 550 W |
| Supported Displays | Up to 4 simultaneous monitors |
