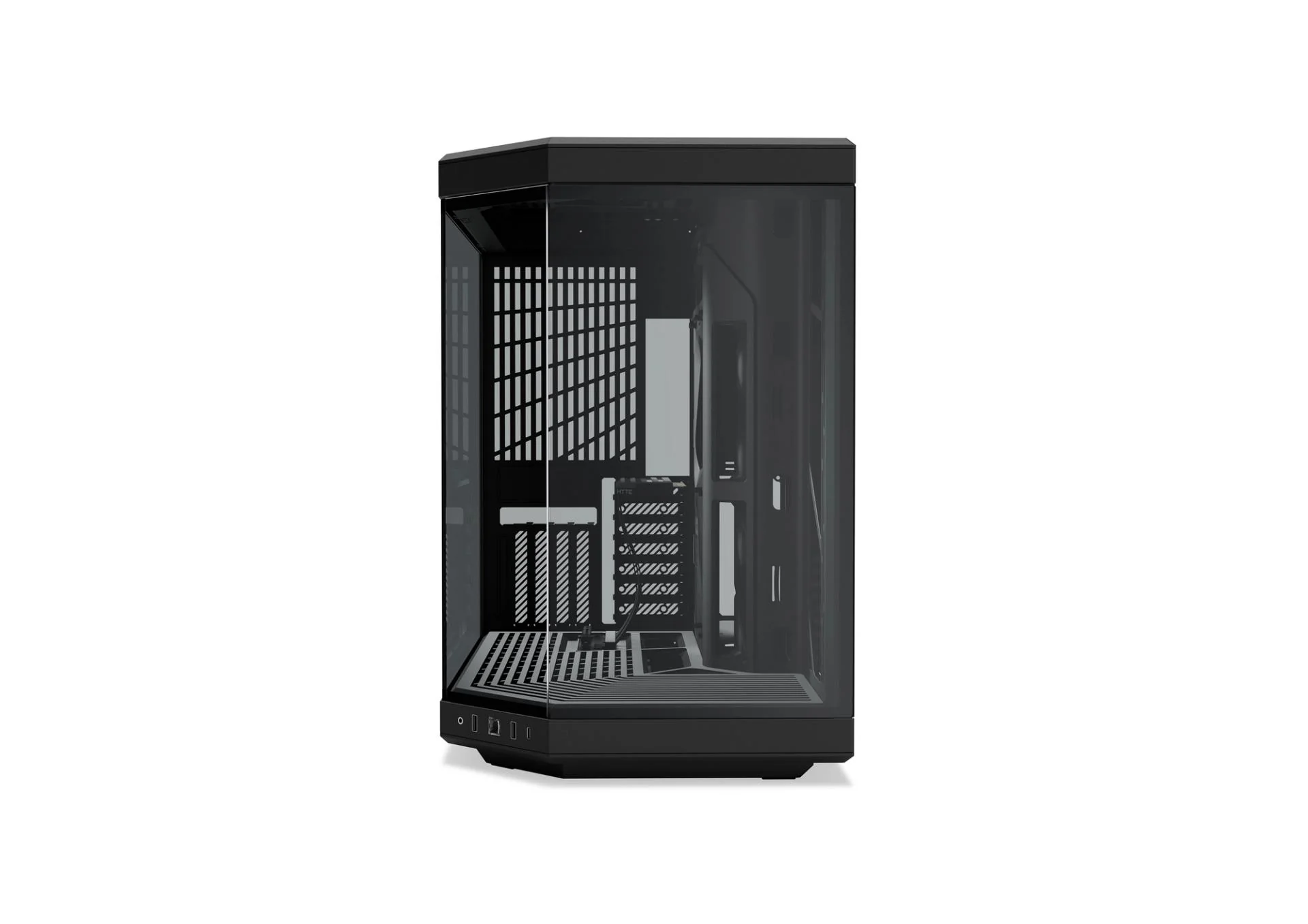

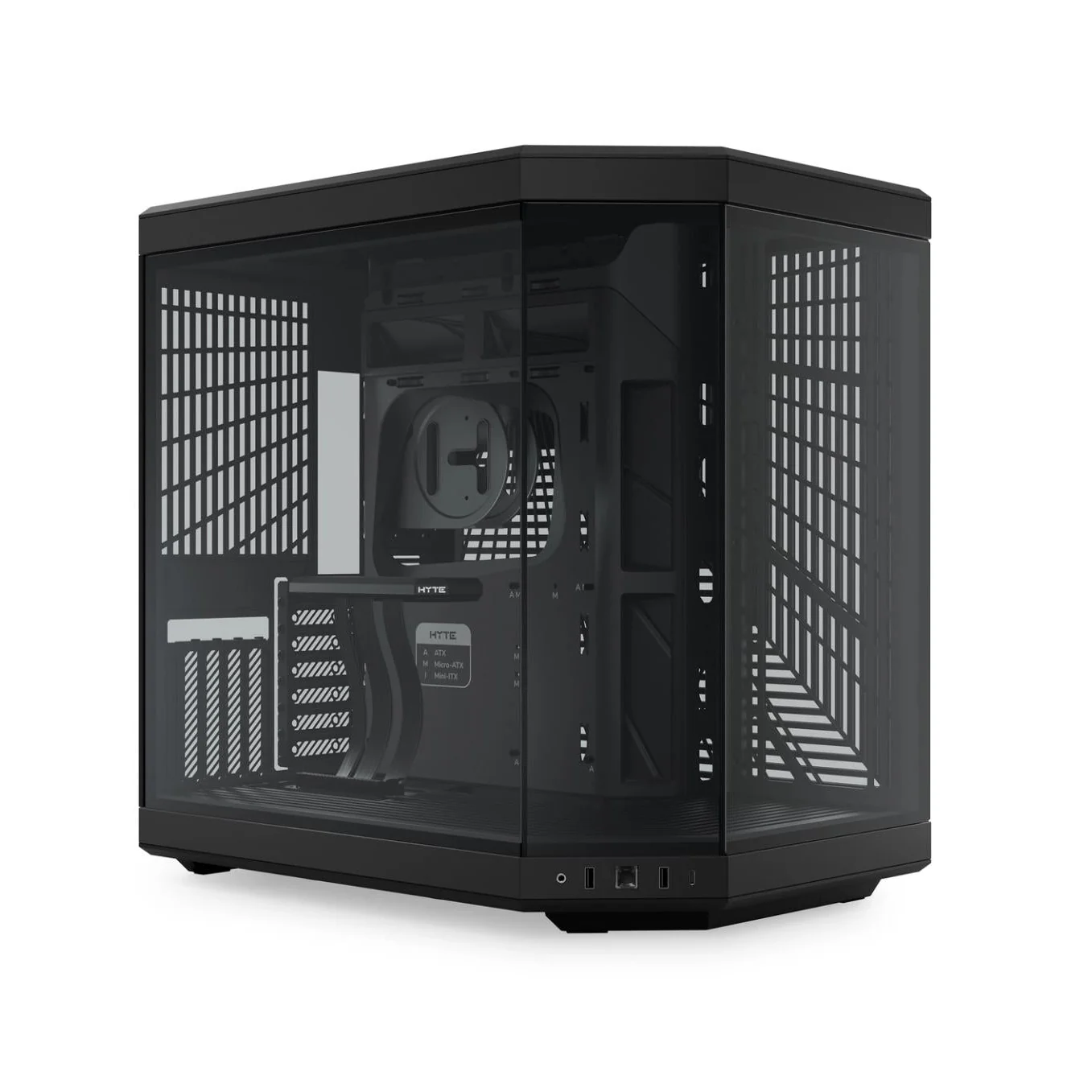

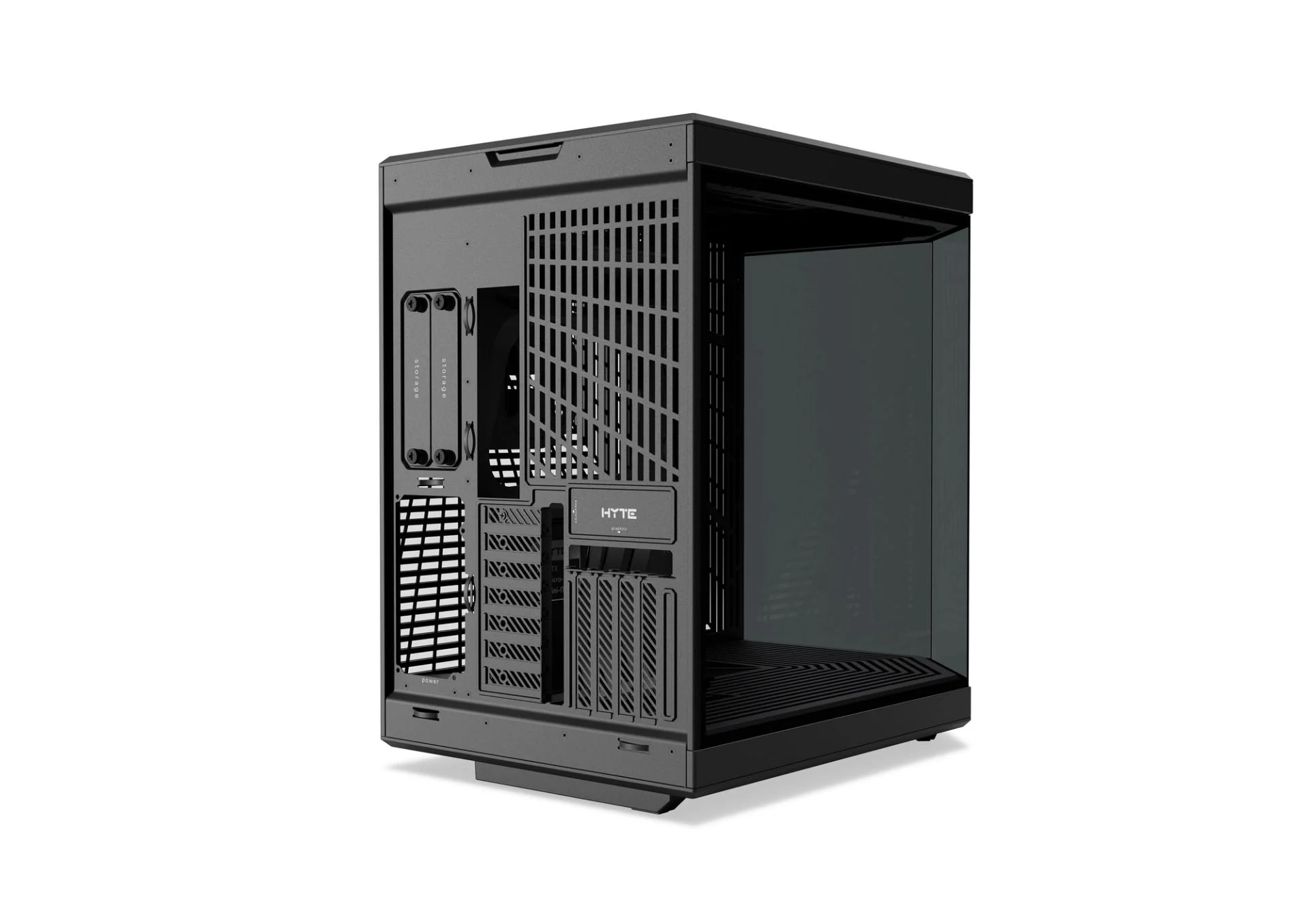

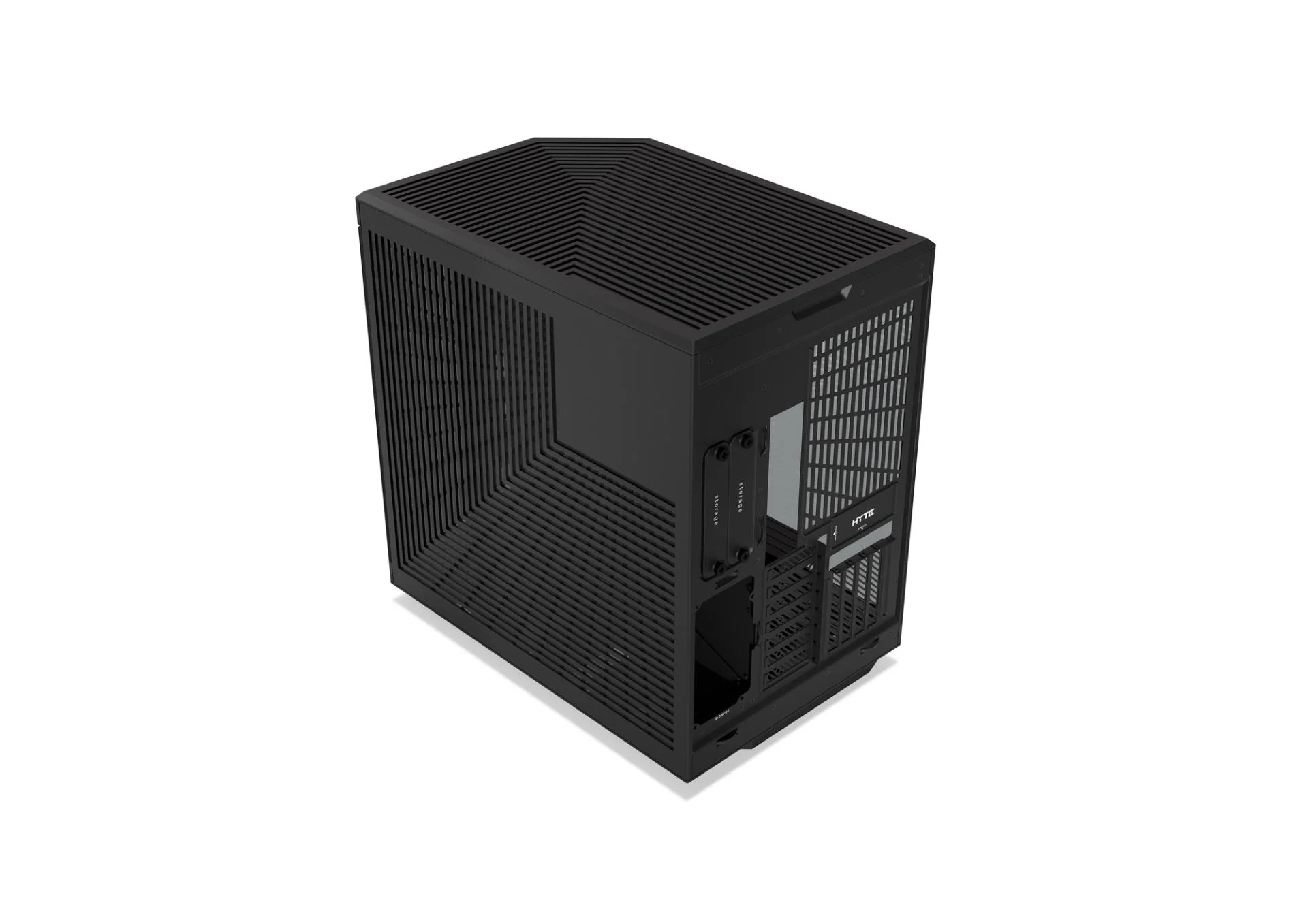

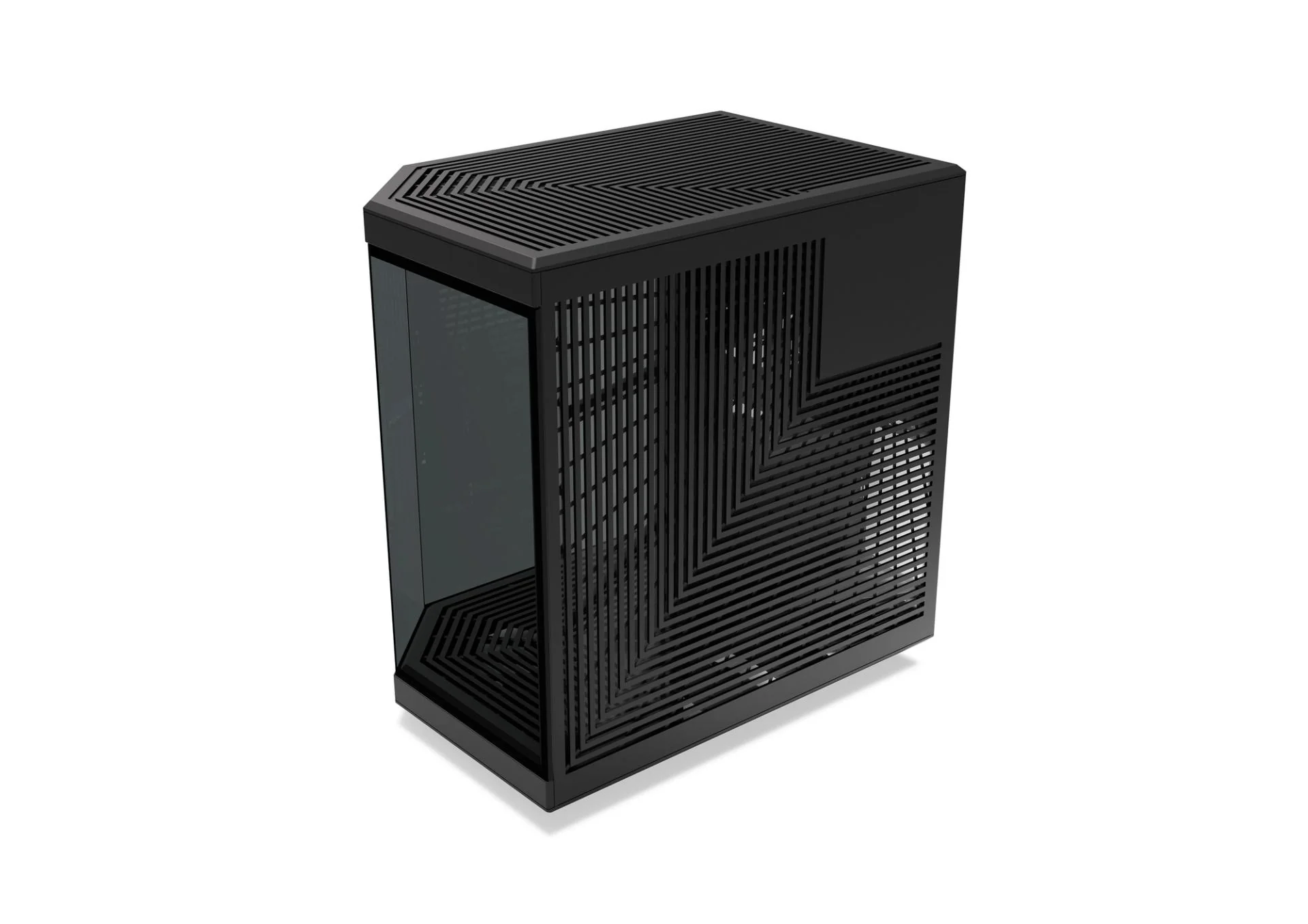

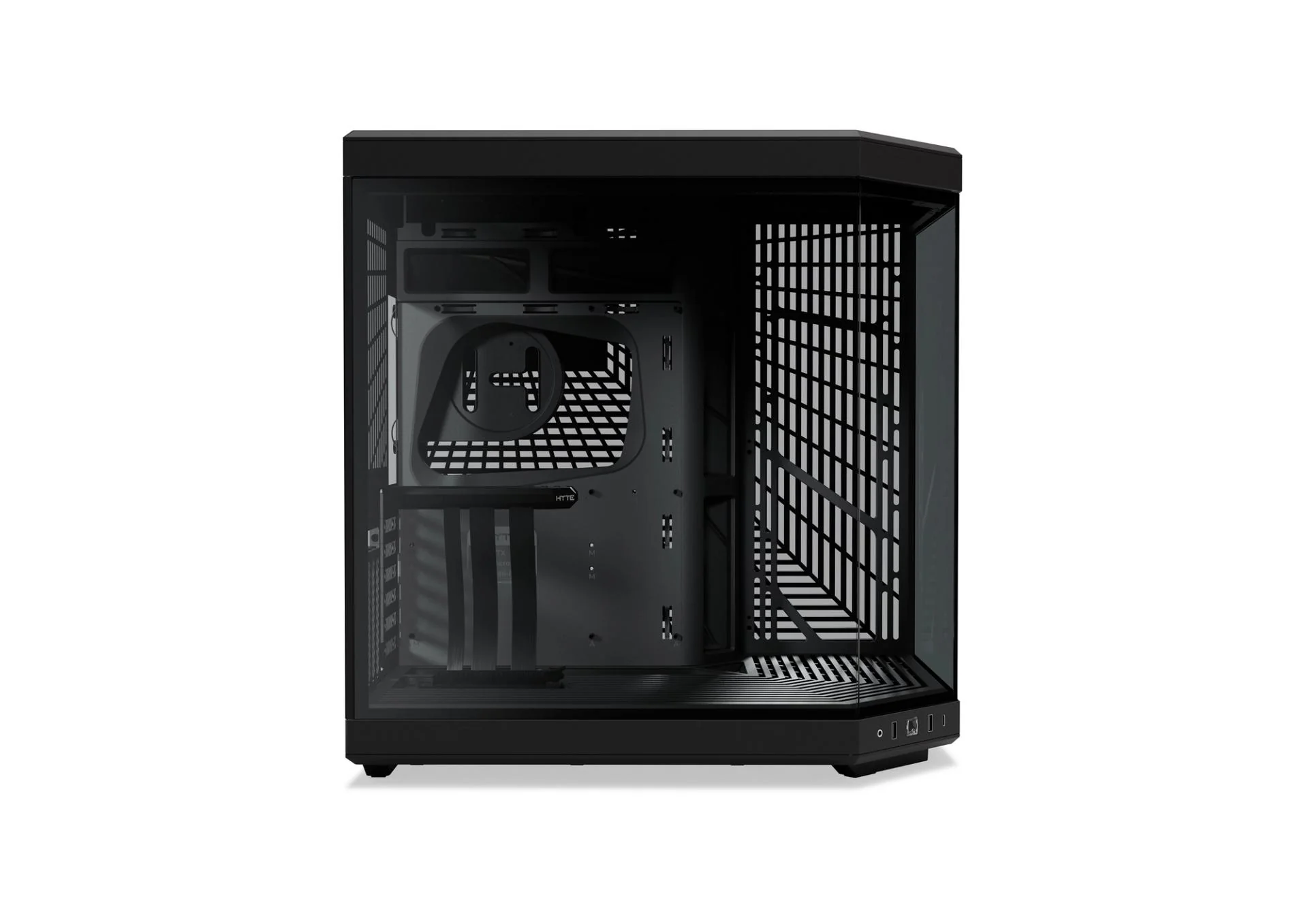

HYTE Y70 E-ATX Mid Tower Gaming Case - Pitch Black

Modern dual-chamber gaming case.
Shows your PC components through panoramic glass.
Supports large GPUs and powerful cooling for stable performance.

Key Features

• Dual-chamber design for cable management and airflow
• Supports vertical GPU installation up to 4 slots
• PCIe 4.0 x16 riser cable included
• Large cooling capacity up to 10 fans
• Panoramic triple-glass design
• Top, side, and bottom dust filters
• Front USB-C, USB-A, and audio ports

Technical Specifications

Design & Size
Type: Dual-Chamber Mid Tower ATX Case
Dimensions: 470 × 320 × 470 mm
Internal Volume: 70.7 L

Motherboard Support
ITX
mATX
ATX
E-ATX

Expansion Slots
7 half-height
4 full-height
PCIe 4.0 x16 riser cable included

Front I/O Ports
1× USB-C 3.2 Gen2
2× USB-A 3.2 Gen1
1× 3.5 mm Audio Combo Jack

Cooling & Fans Support
Top: 3×120 mm or 2×140 mm
Side: 3×120 mm or 2×140 mm
Bottom: 3×120 mm or 2×140 mm
Rear: 120 or 140 mm

Radiator Support
Top: Up to 360 mm (68 mm thick)
Side: Up to 360 mm (125 mm thick)
Rear: 120 or 140 mm

Clearances
Max GPU Length: 422 mm
Max GPU Thickness: 105 mm
Max CPU Cooler Height: 180 mm
Max PSU Length: 235 mm

Storage Support
2× 3.5" HDD
or 4× 2.5" SSD

Additional Features
Three-piece panoramic glass panel
Cable routing channels included
Tool-less removable panels

Color
Pitch Black
