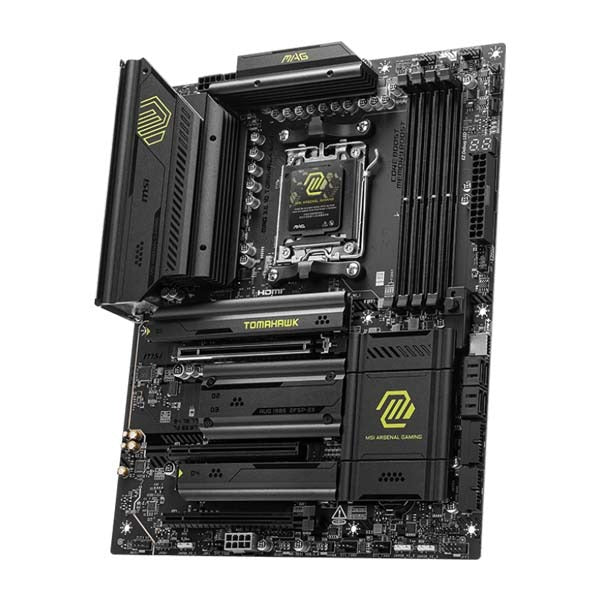

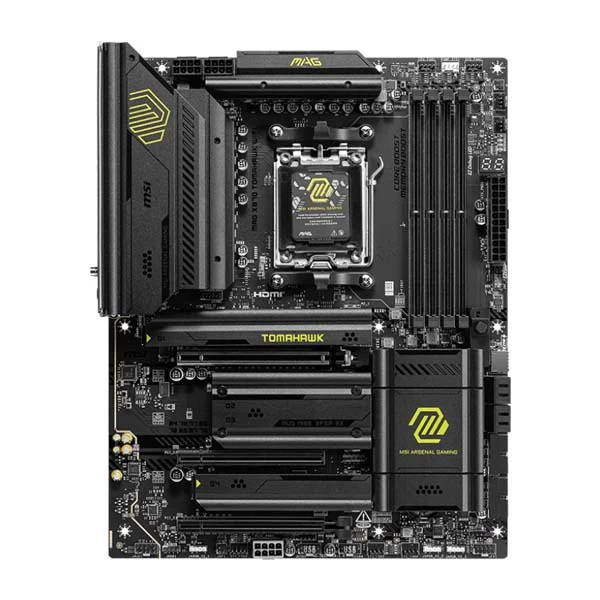

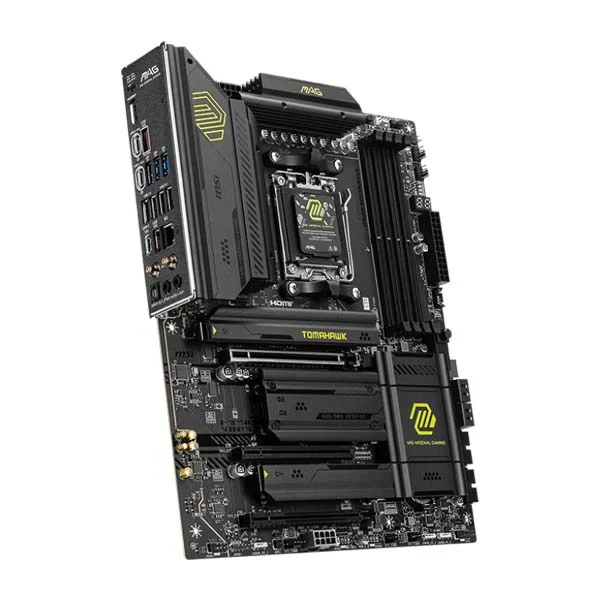

MSI MAG X870 TOMAHAWK WIFI DDR5 AMD ATX Motherboard - Black

ATX AMD X870 motherboard for AM5. Supports Ryzen 9000, 8000, and 7000 Series desktop CPUs. Four-DIMM DDR5 up to 256 GB. One PCIe 5.0 x16 graphics slot. Four M.2 sockets with two PCIe 5.0 x4 from the CPU. Wi-Fi 7 and Bluetooth 5.4. 5 GbE LAN. Dual USB4 40 Gbps Type-C with DisplayPort over USB-C plus HDMI 2.1 FRL. Black color.

Key Features

• Socket AM5. Supports Ryzen 9000 / 8000 / 7000
• DDR5 dual-channel, 4 DIMMs, up to 256 GB
• PCIe 5.0 x16 graphics slot
• Storage: 4 × M.2 (2 × PCIe 5.0 x4 from CPU, 2 × PCIe 4.0 from chipset)
• Wi-Fi 7 with MU-MIMO and Bluetooth 5.4
• Realtek 5 GbE LAN
• Rear I/O: 2 × USB4 40 Gbps Type-C with DP 1.4 over USB-C, 1 × HDMI 2.1 FRL
• Audio Boost with Realtek ALC4080 and optical S/PDIF out
• Front USB-C 20 Gbps with 27 W PD
• Flash BIOS Button and Clear CMOS. Pre-installed I/O shield
• EZ features: EZ PCIe Release, EZ M.2 Clip II, M.2 Shield Frozr, EZ Debug LEDs
• Extended heatsinks, server-grade PCB, 2 oz copper

Specifications

• Chipset: AMD X870
• CPU Socket / Support: AM5; Ryzen 9000 / 8000 / 7000 Series desktop processors
• Form Factor: ATX, 244 × 305 mm
• Memory: 4 × DDR5 UDIMM, dual-channel, non-ECC, unbuffered, up to 256 GB
• PCIe Slots:

• • PCI_E1: up to PCIe 5.0 x16 (CPU)

  • PCI_E2: up to PCIe 3.0 x1 (chipset)

  • PCI_E3: up to PCIe 4.0 x4 (chipset)

• M.2 (Key M): 4 slots

  • M2_1: PCIe 5.0 x4; 2280/22110 (CPU)

  • M2_2: PCIe 5.0 x4; 2260/2280 (CPU)

  • M2_3: PCIe 4.0 x2; 2260/2280 (chipset)

  • M2_4: PCIe 4.0 x4; 2260/2280 (chipset)

• SATA: 4 × SATA 6 Gb/s
• RAID: NVMe RAID 0/1/10
• Graphics Outputs: 1 × HDMI 2.1 FRL up to 4K120/8K60; 2 × USB4 Type-C with DP 1.4 over USB-C (CPU with integrated graphics required for display output)

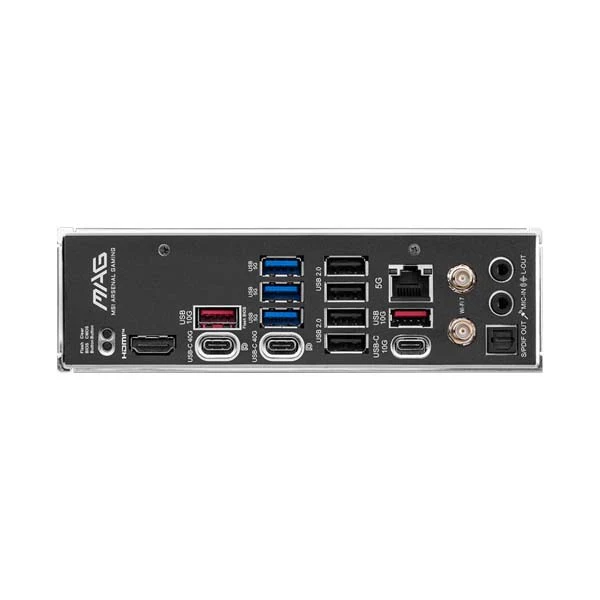

• Rear I/O: 2 × USB4 40 Gbps Type-C, 1 × USB-C 10 Gbps, 2 × USB-A 10 Gbps, 3 × USB-A 5 Gbps, 4 × USB 2.0, 1 × 5 GbE RJ-45, 2 × Wi-Fi antenna, 2 × audio jacks, 1 × optical S/PDIF, Flash BIOS, Clear CMOS
• Internal USB: Front USB-C 20 Gbps with 27 W PD; 2 × USB 5 Gbps headers (add 4 ports); 2 × USB 2.0 headers (add 4 ports)
• Networking: Realtek 8126-CG 5 GbE; Wi-Fi 7; Bluetooth 5.4
• Audio Codec: Realtek ALC4080, 7.1-channel HD, optical S/PDIF out
• Power Connectors: 24-pin ATX; 2 × 8-pin CPU; 1 × 8-pin PCIe auxiliary
• Fan/LED Headers: 1 × CPU; 1 × pump/combo; 6 × system; 1 × 4-pin RGB; 3 × 3-pin ARGB Gen2
• Monitoring/Debug: EZ Debug LEDs; EZ Digi-Debug LED
